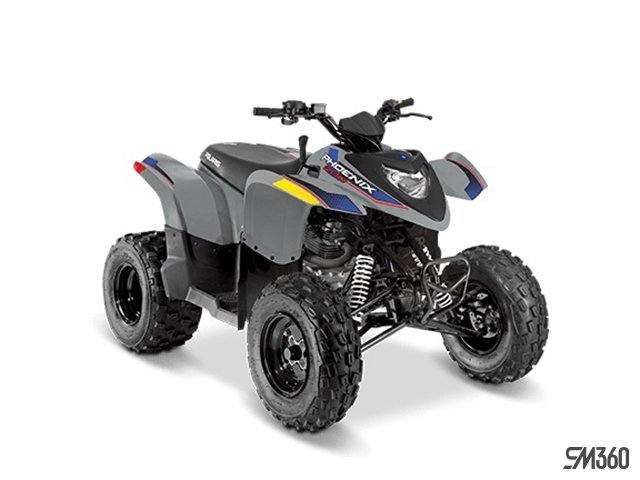

2025 Sportsman Phoenix 200

Standard

• Parking Brake - Dual Handle Bar Mounted, Mechanical Hand Lever
• Front Brakes -Front Hydraulic Disc
• Rear Brakes- Mechanical Drum

Standard

• Engine Type - 4-Stroke Single Cylinder
• Fuel Capacity - 2.5 gal (9.5 L)
• Cooling - Air
• Cylinders Displacement - 196cc
• Fuel System/Battery - Carbureted
• Transmission/Final Drive - Automatic PVT F/N/R; Shaft
• Drive System Type - 2WD, Chain

Standard

• Wheelbase - 45 in (114.3 cm)
• Ground Clearance - 5.7 in (14.5 cm)
• Seat Height (Laden) - 32 in (81.3 cm)
• Dry Weight - 420 lb (191 kg)
• Overall Vehicle Size (L x W x H) - 65 x 42 x 42 in (165.1 x 106.7 x 106.7 cm)

Standard

• Wheels - Stamped Steel
• Rear Tires - 20 x 10-9 Duro
• Front Tires - 21 x 7-10; Duro

Standard

• Lighting - Single Halogen Hi/Low Headlight, Single Rear Brakelight/Taillight
• Instrumentation - N/R Light
• Other Standard Features - Safety Flag, Parent-Adjustable Speed Limiter, Free Online Safety Training
• Speed Limiting - The speed of this vehicle is restricted to under 20 mph (32 km/h) at manufacture. The speed limiting device may be adjusted by supervising adults when they determine that their child is capable of handling additional speed.

Standard

• Rear Suspension - Mono-Shock Swingarm with 6.5 in (16.5 cm) Travel
• Front Suspension - Dual A-Arm with 7 in (17.8 cm) Travel
