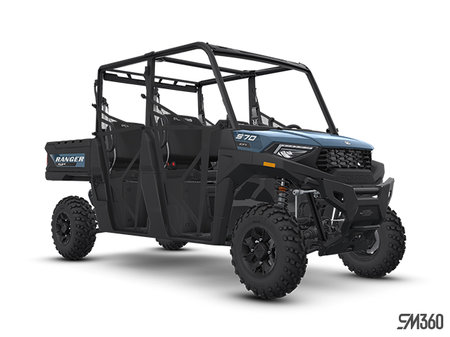

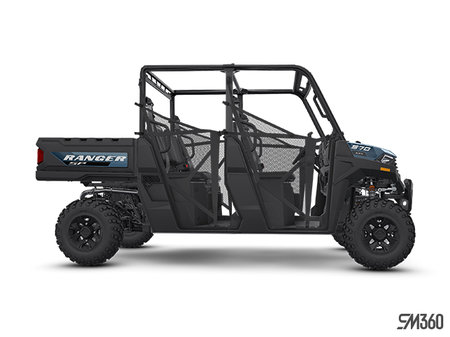

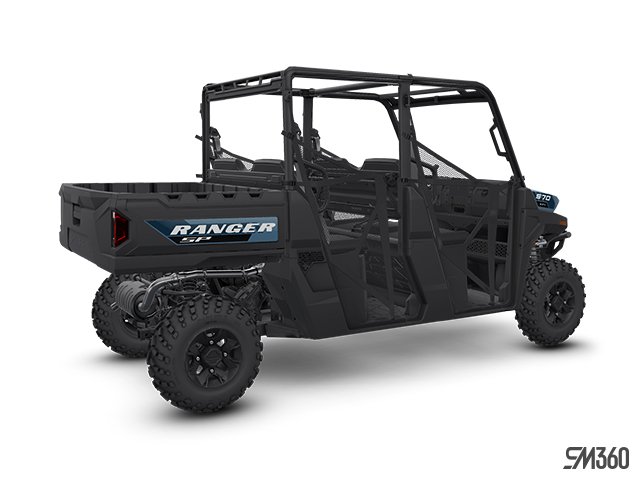

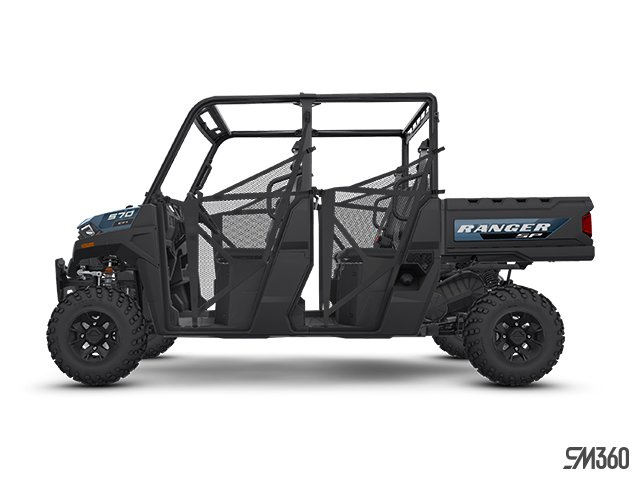

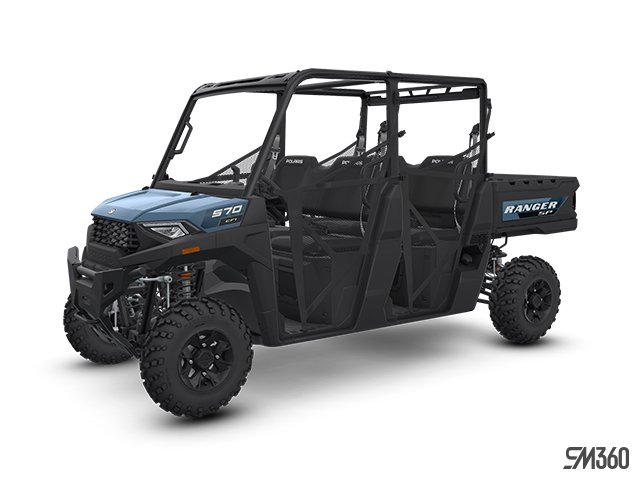

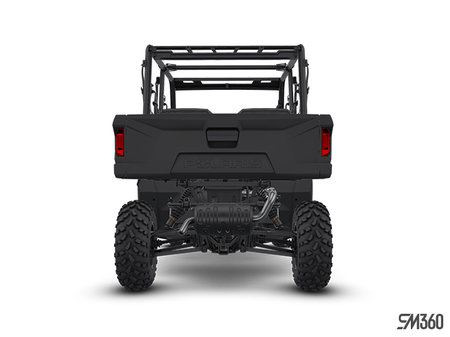

2025 Ranger Crew SP 570 Premium

Standard

• Parking Brake - Park In-Transmission
• Front/Rear Brakes - 4-Wheel Hydraulic Disc

Standard

• Cylinders Displacement - 567cc
• Fuel System/Battery - Electronic Fuel Injection
• Fuel Capacity - 9.5 gal (35.9 L)
• Cooling - Liquid
• Transmission/Final Drive - Automatic PVT H/L/N/R/P; Shaft
• Engine Type - 4-Stroke Single Cylinder DOHC
• Horsepower - 44 HP
• Drive System Type - On-Demand True AWD/2WD/ VersaTrac Turf Mode

Standard

• Person Capacity - 4
• Wheelbase - 105 in (266.7 cm)
• Box Capacity - 500 lb (226.8 kg)
• Bed Box Dimensions - 33.3 x 48.7 x 12.3 in
• Overall Vehicle Size - 144 x 56 x 74 in.
• Ground Clearance - 11 in (27.9 cm)
• GVW - 2,700 lbs
• Payload Capacity - 1,100 lbs. (499 kg)
• Dry Weight - 1,550 lbs. (703 kg)

Standard

• Electronic Power Steering
• Rear Tires - 25 x 10-12; Carlisle 489
• Front Tires - 25 x 8-12; Carlisle 489
• Wheels - Aluminum

Standard

• Hitch Towing Rating - 1,500 lb (680.4 kg)
• Cargo System - Lock & Ride
• Tilt Steering - Standard
• Lighting - High/Low Beam LED Headlights LED Taillamps
• Instrumentation - 4" LCD Rider Information Center: User Selectable Blue/Red Backlighting & Brightness, Programmable Service Intervals, Speedometer, Tachometer, Odometer, Tripmeter, Clock, Hour Meter, Gear Indicator, Fuel Gauge, Coolant Temperature, Voltmeter, Service Indicator and Codes, Seat Belt Reminder, DC Outlet
• Other Standard Features - Gas Assist Dump Box, Single Latch Tailgate, Rear-mounted Fiberglass Insulated Exhaust System, Standard In-dash SAE Charge Port, 575 CCA Battery, 660W Charging System (Stator), 48.4 Gal. Onboard Storage with Enclosed Dash Bins and Integrated Cell-phone Holder, Sealed Suspension Bushings and Wheel Bearings, Full Coverage Steel Front Bumper with Integrated Winch and Plow Mounts, Full Coverage Skid Plate, Premium Body Panels, Premium Cut & Sew Seats, Polaris Pulse Electrical System (3 position), USB Charging Port, Front Stabilizer Bar, Rear Wheel Liners

Optional

• RIDE COMMAND+

Standard

• Front Suspension - MacPherson Strut 9 in (22.9 cm) Travel
• Rear Suspension - Dual A-Arm, IRS 10.0 in (25.4 cm) Travel
• Turning Radius - 16.3 ft
