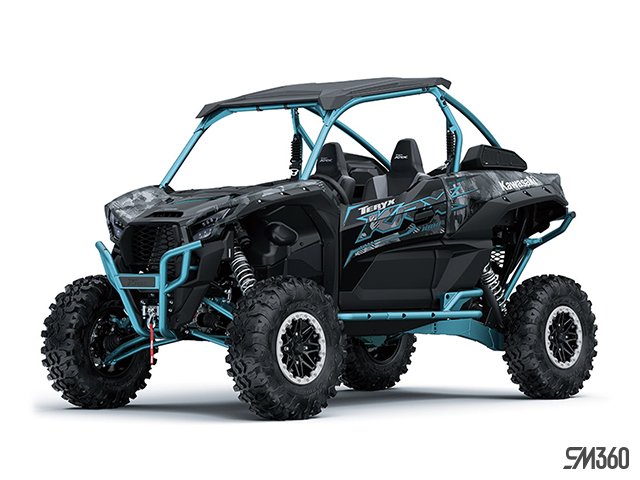

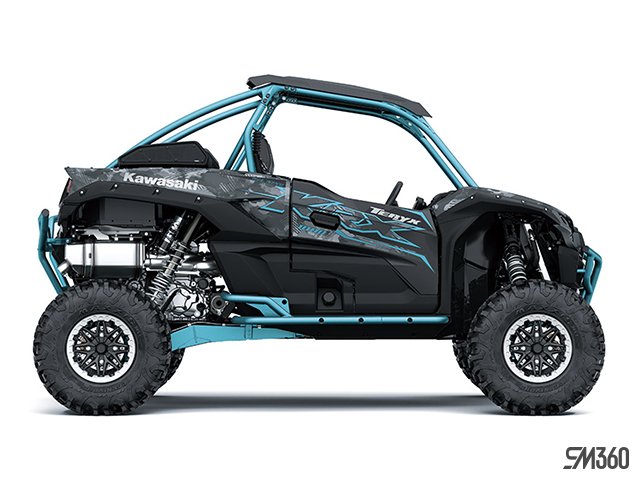

2024 Kawasaki TERYX KRX 1000 TRAIL EDITION

Standard

• Starting - Electric
• Ignition - Digital
• Lubrication - Forced lubrication, wet sump
• Final Drive - 2WD/4WD, shaft
• Transmission - Dual-range (high/low) CVT with centrifugal clutch and reverse
• Engine - 999cc, liquid-cooled, 4-stroke, DOHC 4-valve-per-cylinder parallel twin
• Bore x Stroke - 92.0 x 75.1 mm
• Compression Ratio - 11.5:1
• Fuel System - Fuel injection: ø50 mm x 2

Standard

• Warranty - 6 months
• Kawasaki Protection Plus - 12 / 24 / 36 / 48 months
• Dimensions (L x W x H) - 3,385 x 1,730 x 1,945 mm (133.3 x 68.1 x 76.6 in)
• Wheelbase - 2,510 mm (98.8 in)
• Seat Height - 790 mm (31.1 in)
• Curb Mass - 916 kg (2,019 lb)
• Fuel Capacity - 40 litres
• Tread (F/R) - 1,505 mm (59.3 in) / 1,510 mm (59.4 in)
• Turning Radius - 6.2 m (20.3 ft)
• Cargo Bed Dimensions (LxWxH): 370 x 840 x 230 mm (14.6 x 33.1 x 9.1 in)
• Cargo Bed Capacity: 159 kg (351 lb)
• Seating Capacity - 2
• Vehicle Load Capacity - 354 kg (780 lb)
• Lighting - 2x LED headlights
• Road Clearance - 345/360 mm (standard/max preload) (13.6/14.2 in (standard/max preload))
• Instrumentation - Multi-function digital meter with bar-style tachometer (2 display options), digital speedometer, bar-style fuel gauge, gear indicator (L, H, N, R), Power Mode, driving mode (2WD/4WD/4WD+Diff Lock) indicator, Economical Riding Indicator, clock, odometer, dual trip meters, hour meter, water temperature, digital battery gauge, bar-style CVT temperature gauge, seatbelt warning lamp, oil warning lamp, engine check lamp, water temperature warning lamp, neutral indicator lamp, reverse indicator lamp, parking indicator lamp, EPS warning lamp, CVT belt warning lamp, low-battery warning lamp

Standard

• Chassis Management Technology - ERGO-FIT
• Engine Management Technology - Economical Riding Indicator, Power modes

Standard

• Frame - Ladder type, tubular steel
• Steering - Rack and pinion with Electric Power Steering
• Rake / Trail - 10.0° / 65 mm
• Steering Angle (L/R) - 34° (IN) / 29° (OUT), 34° (IN) / 29° (OUT)
• Front Tire - MAXXIS Carnivore 31 x 10.00R15 8PR, with bead-lock wheels
• Rear Tire - MAXXIS Carnivore 31 x 10.00R15 8PR, with bead-lock wheels
• Front Brake - Dual ø258 mm discs with twin-piston (ø32 mm x2) calipers
• Rear Brake - Dual ø258 mm discs with single-piston (ø38 mm x1) calipers
• Parking Brake - Auto-adjust mechanical disc
• Front Suspension / Wheel Travel - Double wishbone, FOX 2.5 LSC Piggyback Shocks, fully adjustable preload, and 24-position adjustable compression damping / 472 mm (18.6 in)
• Rear Suspension / Wheel Travel - 4-link trailing arm rear suspension, FOX 2.5 LSC Piggyback Shocks, fully adjustable preload, and 24-position adjustable compression damping / 536 mm (21.1 in)
