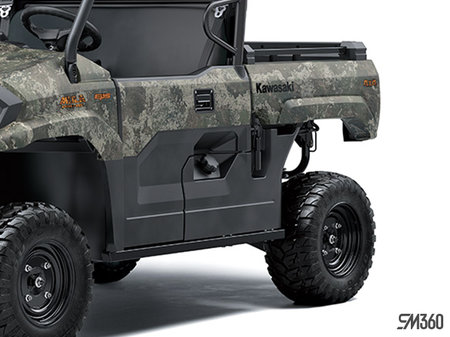

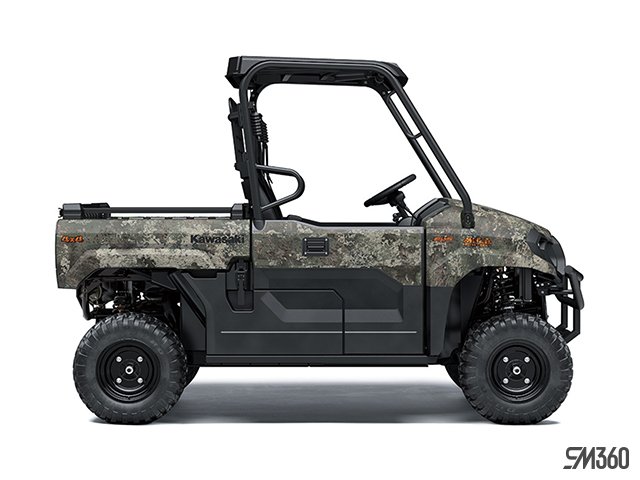

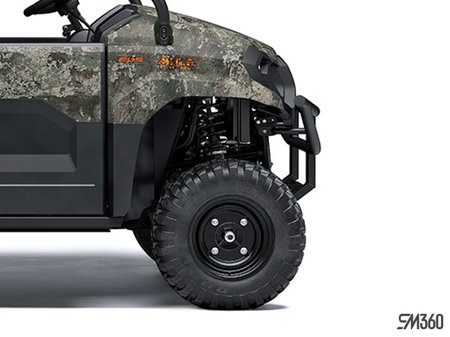

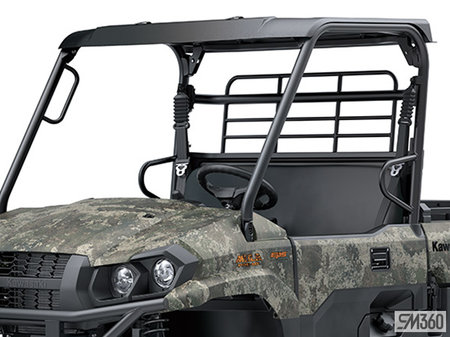

2024 Kawasaki MULE PRO-MX EPS CAMO

Standard

• Starting - Electric
• Fuel System - Fuel injection: ø44 mm x 1
• Lubrication - Forced lubrication, wet sump
• Final Drive - 2WD/4WD, shaft, dual-mode differential
• Ignition - Battery & coil
• Compression Ratio - 10.3:1
• Engine - 695cc, liquid-cooled, 4-stroke, SOHC 4-valve-per-cylinder single
• Bore x Stroke - 102.0 x 85.0 mm
• Transmission - Dual-range (high/low) CVT with centrifugal clutch and reverse

Standard

• Kawasaki Protection Plus - 12 / 24 / 36 / 48 months
• Warranty - 36 months
• Seating Capacity - 2
• Dimensions (L x W x H) - 2,795 x 1,525 x 1,925 mm (110.0 x 60.0 x 75.8 in)
• Wheelbase - 2,005 mm (78.9 in)
• Road Clearance - 270 mm (10.6 in)
• Seat Height - 850 mm (33.5 in)
• Fuel Capacity - 36 litres
• Tread (L/R) - 1,322 mm (52.0 in) / 1,285 mm (50.6 in)
• Turning Radius - 4.2 m (13.8 ft)
• Cargo Bed Dimensions (LxWxH) - 847 x 1,119 x 232 mm (33.3 x 44.1 x 9.1 in)
• Cargo Bed Capacity - 317 kg (700 lb)
• Vehicle Load Capacity - 544 kg (1,200 lb)
• Towing Capacity - 680 kg (1,500 lb)
• Lighting - 2x halogen, 2x LED headlights
• Curb Mass - 725 kg (1,598 lb)
• Instrumentation - Multi-function display includes driving mode (2WD/4WD) indicator, digital speedometer, digital fuel gauge, clock, odometer, dual trip meters, hour meter, differential indicator lamp, and various warning lamps

Standard

• Frame - Ladder type, tubular steel
• Steering - Rack and pinion with Electric Power Steering
• Front Brake - Dual ø212 mm discs with two-piston calipers
• Rear Brake - Dual ø212 mm discs with single-piston calipers
• Parking Brake - Dual discs (mechanical)
• Front Suspension / Wheel Travel - Double wishbone / 218 mm (8.6 in)
• Rear Suspension / Wheel Travel - Double wishbone / 232 mm (9.1 in)
• Rake / Trail - 5.0° / -
• Steering Angle (L/R) - 40° (IN) / 30° (OUT), 40° (IN) / 30° (OUT)
• Front Tire - 25 x 8.00R12
• Rear Tire - 25 x 10.00R12
