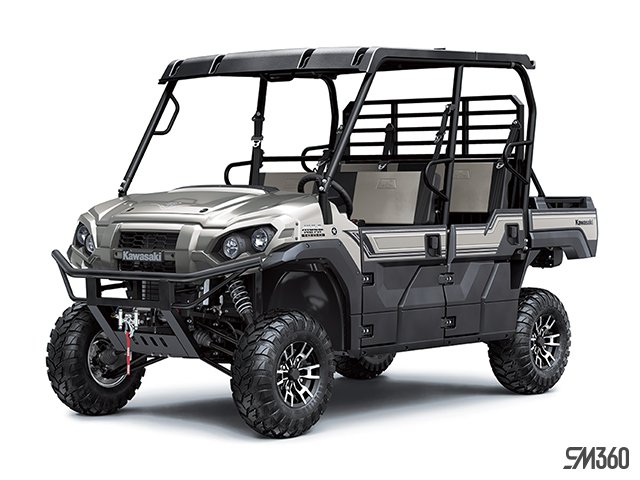

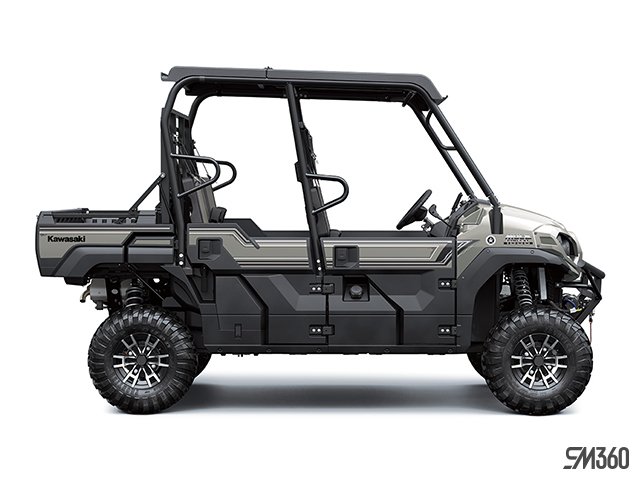

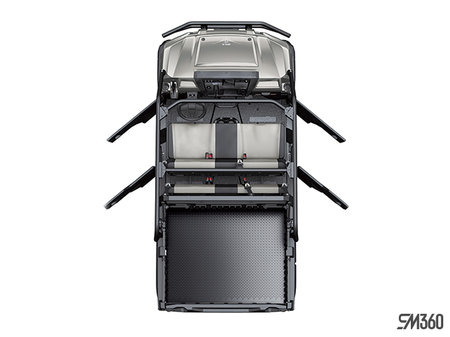

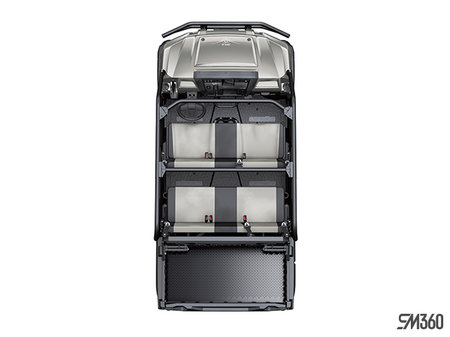

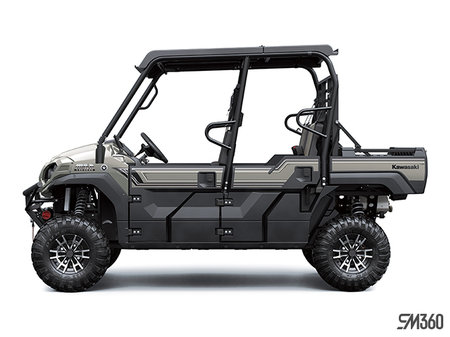

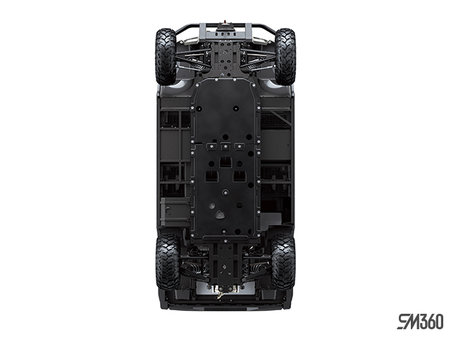

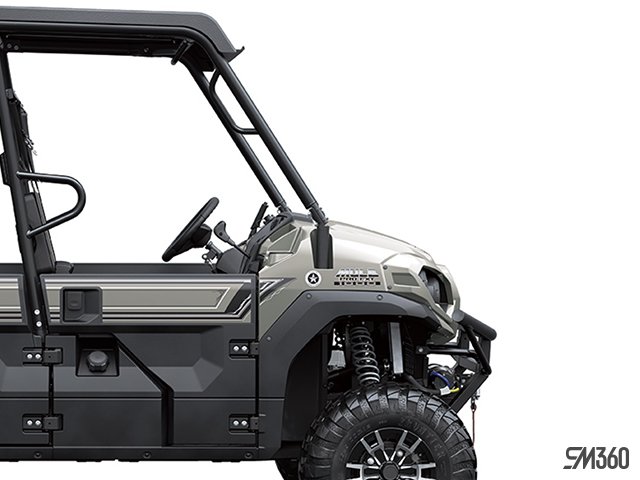

2024 Kawasaki MULE PRO-FXT 1000 LE RANCH EDITION

Standard

• Starting - Electric
• Ignition - Digital
• Lubrication - Forced lubrication, wet sump
• Final Drive - 2WD/4WD, shaft, dual-mode differential
• Engine - 999cc, liquid-cooled, 4-stroke, DOHC 4-valve-per-cylinder parallel twin
• Bore x Stroke - 92.0 x 75.1 mm
• Compression Ratio - 10.1:1
• Fuel System - Fuel injection: ø38 mm x 1
• Transmission - Dual-range (high/low) CVT with reverse

Standard

• Kawasaki Protection Plus - 12 / 24 / 36 / 48 months
• Wheelbase - 2,345 mm (92.3 in)
• Fuel Capacity - 30 litres
• Turning Radius - 4.8 m (15.7 ft)
• Towing Capacity - 907 kg (2,000 lb)
• Warranty - 36 months
• Seating Capacity - 3 or 6
• Lighting - 2x halogen, 2x LED headlights
• Mass Without Fuel - 858 kg (1,892 lb)
• Cargo Bed Dimensions (LxWxH): 6-Person Mode - 560 x 1,363 x 279 mm (22.0 x 53.7 x 11.0 in)
• Cargo Bed Dimensions (LxWxH): 3-Person Mode - 1,085 x 1,363 x 279 mm (42.7 x 53.7 x 11.0 in)
• Cargo Bed Capacity: 6-Person Mode - 158 kg (348 lb)
• Cargo Bed Capacity: 3-Person Mode - 453 kg (1,000 lb)
• Vehicle Load Capacity - 711 kg (1,567 lb)
• Instrumentation - Multi-function display includes driving mode (2WD/4WD) indicator, digital speedometer, digital fuel gauge, clock, odometer, dual trip meters, hour meter, and various warning lamps
• Dimensions (L x W x H) - 3,450 x 1,625 x 2,055 mm (135.8 x 64.0 x 80.9 in)
• Road Clearance - 295/320 mm (standard/max preload) (11.6/12.6 in (standard/max preload))
• Seat Height - 910 mm (35.8 in) front, 1,000 mm (39.4) rear
• Curb Mass - 892 kg (1,967 lb)
• Tread (L/R) - 1,373 mm (54.1 in) / 1,307 mm (51.5 in)

Standard

• Chassis Management Technology: ERGO-FIT
• Engine Management Technology: electronic throttle valves

Standard

• Frame - Ladder type, tubular steel
• Steering - Rack and pinion with Electric Power Steering
• Steering Angle (L/R) - 40° (IN) / 31° (OUT), 40° (IN) / 31° (OUT)
• Front Tire - 26 x 9.00R12 4PR
• Rear Tire - 26 x 11.00R12 4PR
• Parking Brake - Dual discs (mechanical)
• Front Suspension / Wheel Travel - Double wishbone / 279 mm (11.0 in)
• Rear Suspension / Wheel Travel - Double wishbone, self-levelling suspension / 256 mm (10.1 in)
• Rake / Trail - 3.7° / 20 mm
• Front Brake - Dual ø212 mm discs with two-piston calipers
• Rear Brake - Dual ø212 mm discs with single-piston calipers
