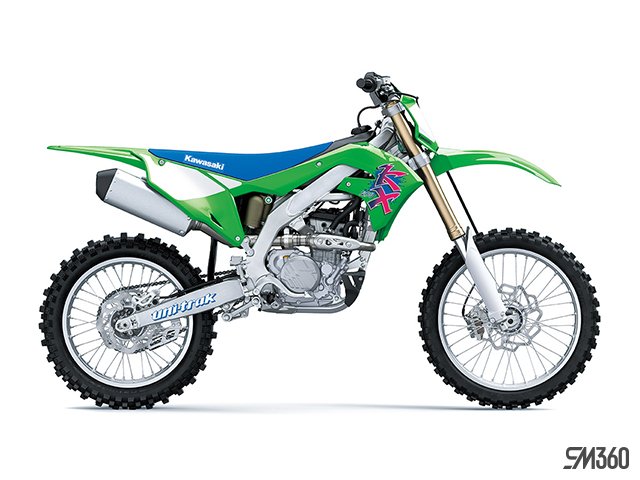

2024 Kawasaki KX250 50th ANNIVERSARY EDITION

Standard

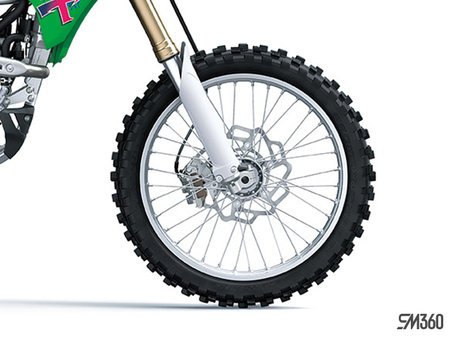

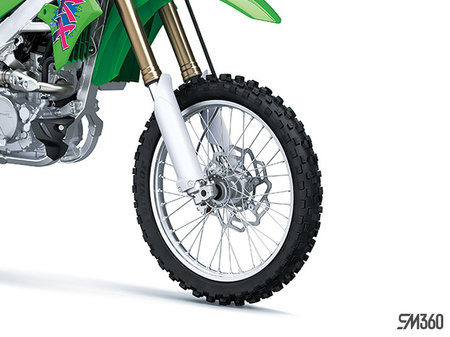

• Front Tire - 80/100-21 51M
• Frame - Perimeter, aluminum

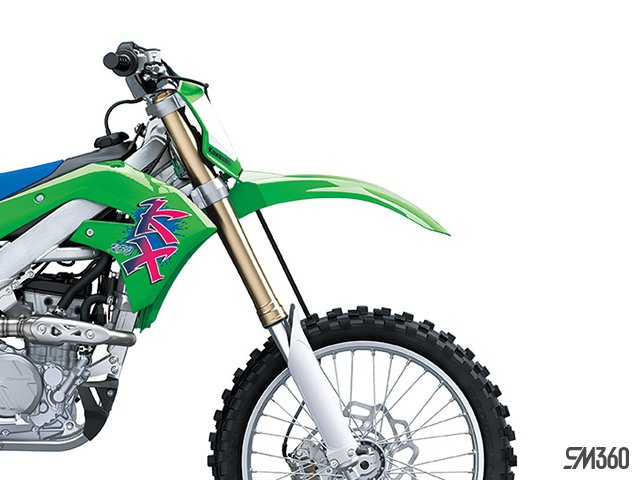

• Front Suspension / Wheel Travel - ø48 mm inverted fork with adjustable compression and rebound damping / 314 mm (12.4 in)

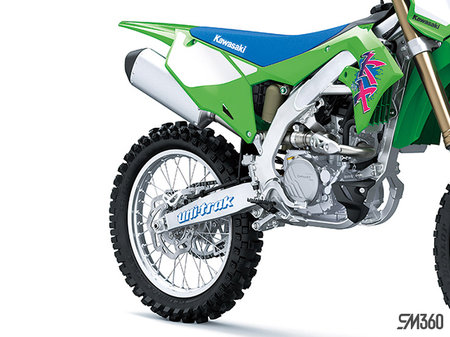

• Rear Suspension / Wheel Travel - New Uni Trak with adjustable dual-range (high/low-speed) compression damping, adjustable rebound damping and adjustable preload / 316 mm (12.4 in)
• Steering Angle (L/R) - 42° / 42°
• Rear Brake - ø240 mm petal disc with single-piston caliper
• Rake / Trail - 27.1° / 118 mm
• Rear Tire - 110/90-19 62M
• Front Brake - Semi-floating ø270 mm petal disc with dual-piston caliper

Standard

• Ignition - Digital DC-CDI
• Starting - Electric
• Clutch - Wet multi-disc, manual
• Final Drive - Chain
• Transmission - 5-speed, return
• Engine - 249cc, liquid-cooled, 4-stroke, DOHC 4-valve single
• Bore x Stroke - 78.0 x 52.2 mm
• Compression Ratio - 14.1:1
• Fuel System - Fuel injection: ø44 mm x 1, with dual injectors
• Lubrication - Forced lubrication, semi-dry sump

Standard

• Wheelbase - 1,485 mm (58.5 in)
• Fuel Capacity - 6.2 litres
• Road Clearance - 345 mm (13.6 in)
• Dimensions (L x W x H) - 2,190 x 820 x 1,270 mm (86.2x 32.3 x 50.0 in)
• Seat Height - 960 mm (37.8 in)
• Curb Mass - 107.8 kg (238 lb)
• Mass Without Fuel - 103.2 kg (228 lb)

Standard

• Chassis Management Technology - ERGO-FIT
• Engine Management Technology - Dual injectors, Launch control mode
